Wi-Fi Digital Heating Controller DHTPW04230X1

199.00 ex. VAT

WI-FI Enabled Modern Slim-Line Touch Screen Programmable Heating Controller

Clear
SKU: N/A Category:

Product Description

The DHTPW04 is a modern, stylish, touch screen, Wi-Fi enabled programmable digital heating controller. Control of the thermostat can be directly via the touch screen interface or via an APP on your smart phone.

In heating mode the environment with in a room / zone can be controlled precisely to ensure that the required comfort levels are achieved efficiently.

The microprocessor (brain) of the controller lets the user configure time, temperature control options to suit daily, weekly or weekend schedules.

Alternatively the DHTPW04 can be controlled or configured via an APP (Apple or Android) on your smart phone.

Its modern slimline design and easyflow’ menu structure makes it the perfect choice for the consumer.

The DHTP04 has many configurable control options making it flexible and adaptable.

Colour Options: Black or White

External Sensor: NTC Type sensor for remote temperature controls i.e. Controller 1x 230V) placed in hallway, Sensor positioned in Wet area i.e. bathroom) (NTCS01).

Key Card Control:  Hotel applications (Controller Deactivated when Key card has been removed.

  • WIFI

* Upgrade Options will incur additional costs

Additional Information

Colour

Black, White

Reviews

There are no reviews yet.

Be the first to review “Wi-Fi Digital Heating Controller DHTPW04230X1”

Your email address will not be published. Required fields are marked *

Specifications

  • Function: Heating (Wet or Electric Systems) – Programmable Wi-Fi Enabled
  • Sensor Type : NTC
  • Temperature Range:  5- 35℃
  • Accuracy: ±1℃
  • Power Consumption: < 1.5W
  • Timing Error: <1%
  • Power Supply: 95 ~ 240VAC, 50 ~60Hz
  • Wet Heating Load (Max): 3 Amps
  • Electric Heating Load (Max): 16 Amps
  • Shell materialPC+ABS (Fire Proof)

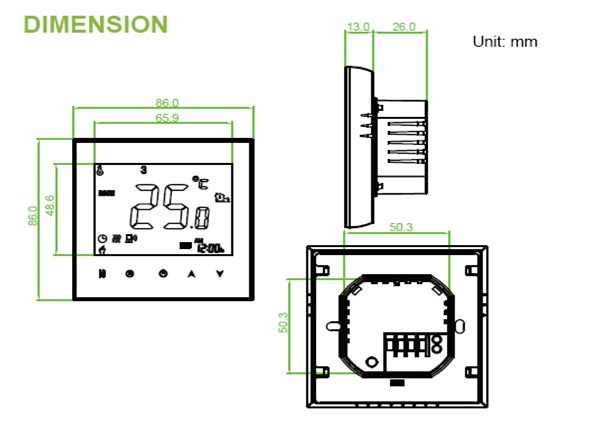

  • Dimension:86mmx86mmx13.3mm
  • Ambient Temp.:0-45℃,5-95%RH (Non-condensing)
  • Storage Temp.:-10℃ ~ 55℃
  • Installation: Suitable for single gang box (86mmx86mm). M3.5mm screw at 60mm centres.
  • Colour:- White
  • User Interface: Touchscreen, Wi-Fi App on Smart Phone
  • Backlight Colour: White / Blue
  • Programmable: Yes (5 day-2 day, 6 time programmes per day)
